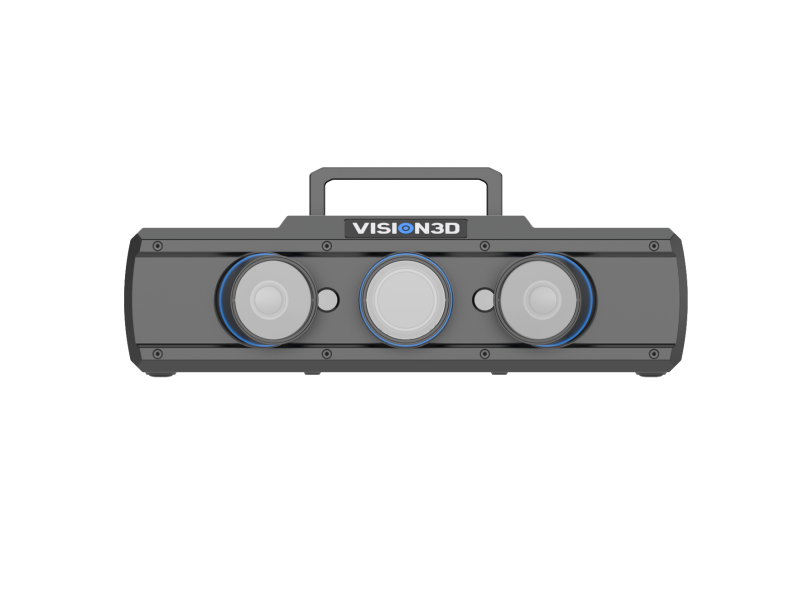

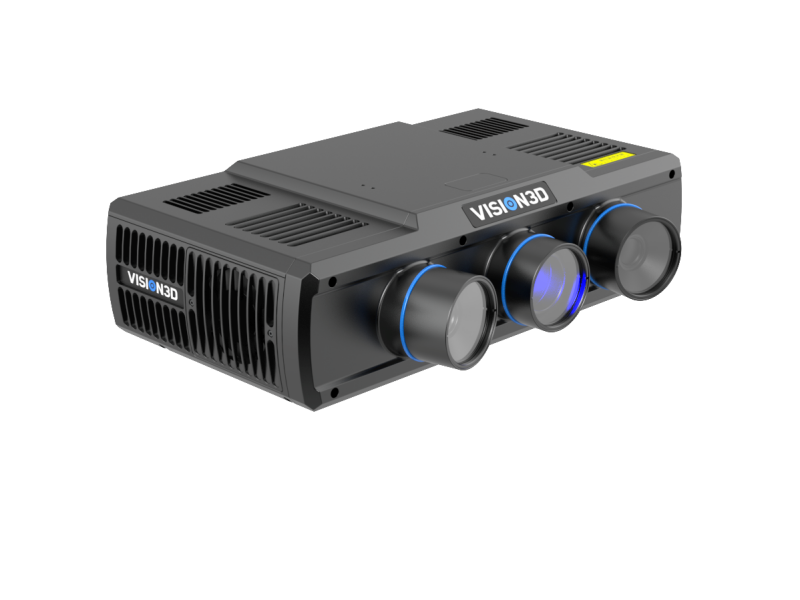

PowerScan® 5M Pro

Product Introduction

Next-Gen Blue Light 3D Scanning System

The PowerScan® 5M Pro brings a significant performance upgrade, with a robust, aviation-grade lightweight design and integrated structure. Featuring an aviation-grade Ethernet port, it ensures enhanced stability, even in demanding industrial environments with high temperatures, dust, and humidity.

Equipped with high-pixel industrial cameras and an optimized high-resolution optical engine, the PowerScan® 5M Pro doubles the light source power compared to its predecessor. This enables single-frame accuracy of up to 0.015mm and a scanning speed of 0.2s/frame.

  • Certified Quality StandardsIndependent Technology
  • Smart Security ProtectionIntegrated HW & SW
  • Premium Durable MaterialsIndustrial Expertise
  • Flexible Customization OptionsCustomer Focus
WhatsApp Email
PowerScan® 5M Pro
PowerScan® 5M Pro
PowerScan® 5M Pro
PowerScan® 5M Pro

Core Technical Features

PowerScan® 5M Pro

Ultra-High-Speed Scanning

Leveraging GPU parallel computing and Gigabit Ethernet for efficient data transmission, the system achieves single-frame scan times as fast as 0.2s, enabling high-speed performance for demanding applications.

PowerScan® 5M Pro

Ultra-High Precision Measurement

Equipped with high-resolution cameras and a robust hardware structure, the system delivers 0.015mm single-scan accuracy, ensuring metrology-grade precision for detailed inspections.

PowerScan® 5M Pro

Superior Detection of Dark and Reflective Parts

With an advanced optical engine and photosensitive sensor chips, the system ensures optimal performance on highly reflective or deep black finishes, capturing high-quality data even in challenging conditions.

PowerScan® 5M Pro

Simplified Data Alignment

Powered by VisionInspect software, the system supports intuitive grouped data stitching, streamlining the measurement process and making complex inspections more efficient.

Parameter Table

Product Specifications PowerScan® 5M100 Pro PowerScan® 5M180 Pro PowerScan® 5M300 Pro
Megapixel [MP] 5 5 5
Single Measurement Accuracy [mm] 0.01 0.015 0.02
Point Distance [mm] 0.04 0.07 0.14
Minimum Measuring Area [mm] 80×50-250 165×140-425 210×170-480
Optimal Measuring Area [mm] 100×60-280 180×150-475 300×200-600
Maximum Measuring Area [mm] 100×65-310 180×200-625 300×260-780
Depth of Field [mm] 60 200 300
Single Measurement Time [s] 0.3 0.2 0.2
Net Weight [kg] 6.5 7 8
Size [mm] 300×210×100 350×240×100 400×240×100
Recommended Applications Multi-Scenario Application Solutions Universal Industrial Applications Large-Scale Coverage

After-Sales Support

We offer a comprehensive after-sales support system for all PowerScan® 5M | 12M units, including a one-year warranty and prompt replacement of spare parts. Our experienced technical team is available online to provide real-time assistance for troubleshooting, calibration, and maintenance guidance. Each system is delivered with all standard accessories, such as calibration targets and connection cables, ready for immediate use. All scanners and software are fully tested and calibrated before shipment, ensuring reliable performance, easy operation, and minimal setup time—allowing you to focus on accurate and efficient inspection workflows.
