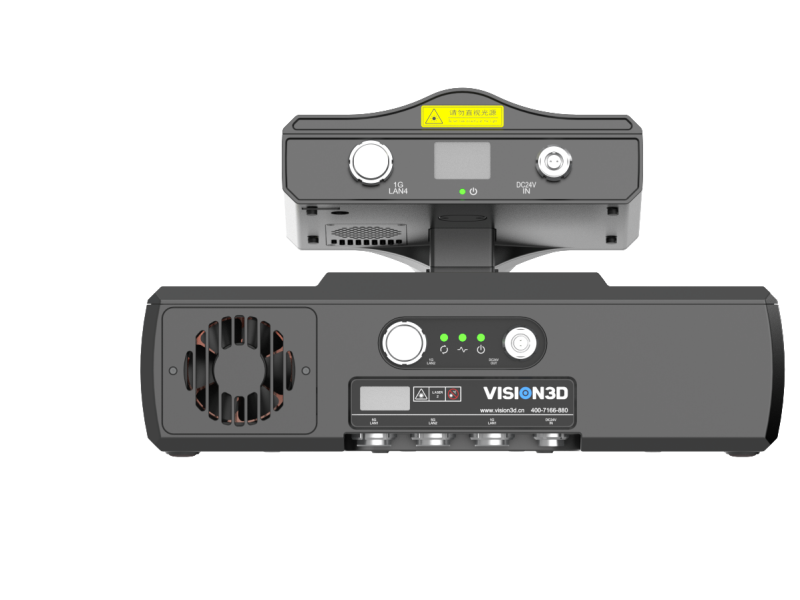

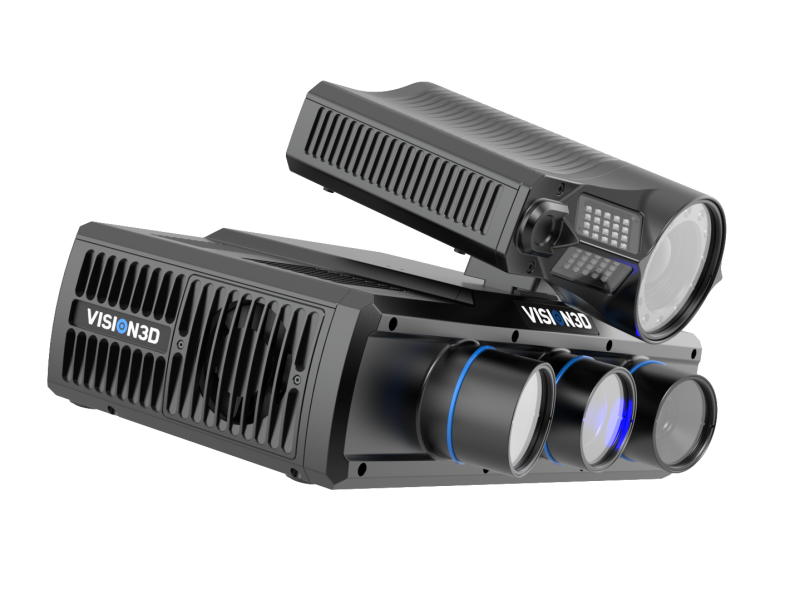

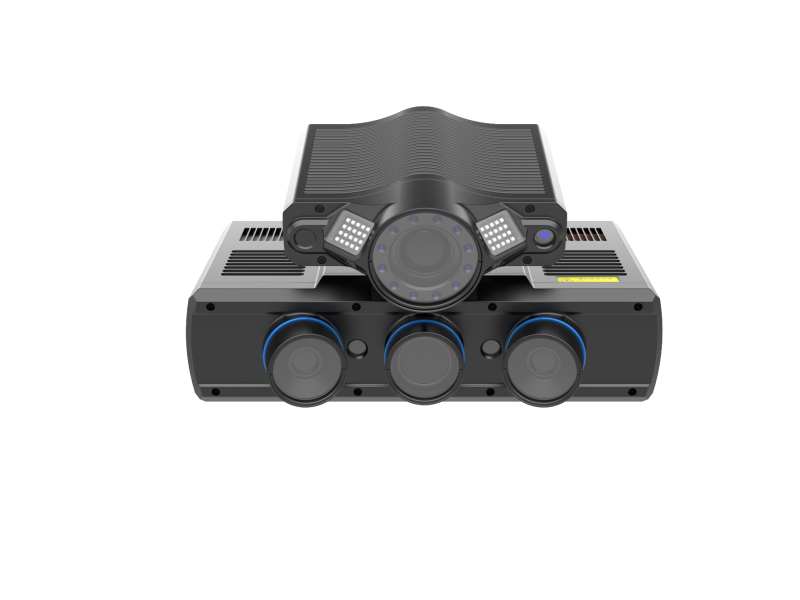

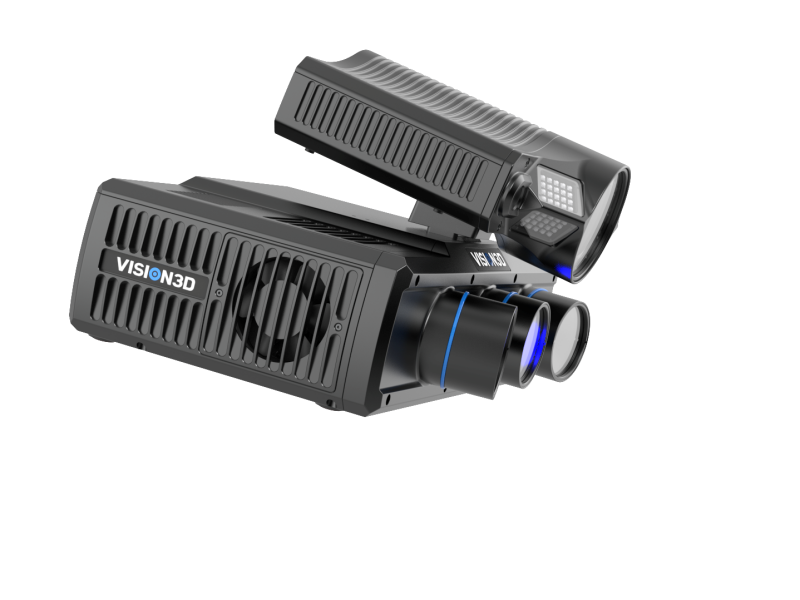

PowerScan®-G

Product Introduction

Global Blue Light Surface Scanning 3D Measurement System

The PowerScan®-G integrates a high-performance blue light sensor with a high-resolution photogrammetry system for high-precision stitching and dimensional inspection. This system significantly reduces the need for reference targets, streamlining the measurement process.

When paired with linear rails or composite robots, the photogrammetry module enables rapid, full-scale inspection of large components with minimal downtime.

  • Certified Quality StandardsIndependent Technology
  • Smart Security ProtectionIntegrated HW & SW
  • Premium Durable MaterialsIndustrial Expertise
  • Flexible Customization OptionsCustomer Focus
WhatsApp Email
PowerScan®-G
PowerScan®-G
PowerScan®-G
PowerScan®-G
PowerScan®-G
PowerScan®-G

Core Technical Features

PowerScan®-G

Precision: Sub-10μm Global Accuracy

Equipped with 20-megapixel industrial-grade sensors, the system delivers sub-10μm global accuracy, meeting the strict metrology requirements for aero-engine blade profile tolerances and cross-sectional dimensions.

PowerScan®-G

Speed: 0.2s Instantaneous Data Acquisition

With ultra-fast response times, the system minimizes global positioning time for large-scale workpieces, boosting inspection throughput significantly.

PowerScan®-G

Stability: IP65-rated Fully Sealed Enclosure

Designed for harsh shop-floor conditions, the system features dustproof and waterproof protection, ensuring reliability in environments with heavy dust and oil mist.

PowerScan®-G

Agility: Modular Design Weighing Only 1.5kg

The lightweight, modular architecture reduces the payload on robotic arms, enhancing flexibility and dynamic response speed in automated inspection workflows.

Parameter Table

Product Specifications PowerScan®-G400
Megapixel [MP] 20
Pixel Size [mm] 0.1
Volumetric Accuracy [mm] 0.015
Minimum Measuring Area [mm] 350×350-350
Optimal Measuring Area [mm] 400×400-400
Maximum Measuring Area [mm] 950×950-950
Depth of Field [mm] 600
Single Measurement Time [s] 0.2
Net Weight [kg] 1.5
Size [mm] 170×170×90
Recommended Applications Specifically engineered for high-complexity parts that demand metrology-grade precision

After-Sales Support

We offer a comprehensive after-sales support system for all PowerScan® 5M | 12M units, including a one-year warranty and prompt replacement of spare parts. Our experienced technical team is available online to provide real-time assistance for troubleshooting, calibration, and maintenance guidance. Each system is delivered with all standard accessories, such as calibration targets and connection cables, ready for immediate use. All scanners and software are fully tested and calibrated before shipment, ensuring reliable performance, easy operation, and minimal setup time—allowing you to focus on accurate and efficient inspection workflows.
