Tracking-based Blue Light Area-Scanning 3D Measurement System

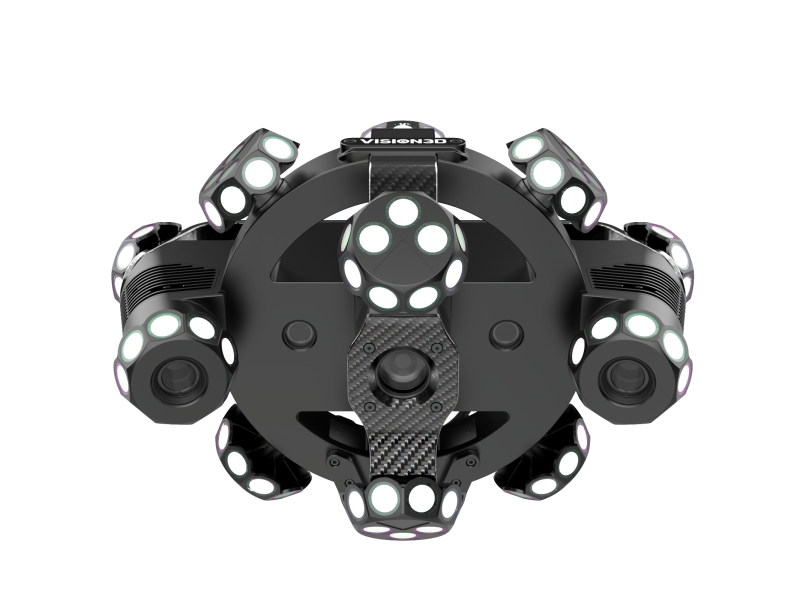

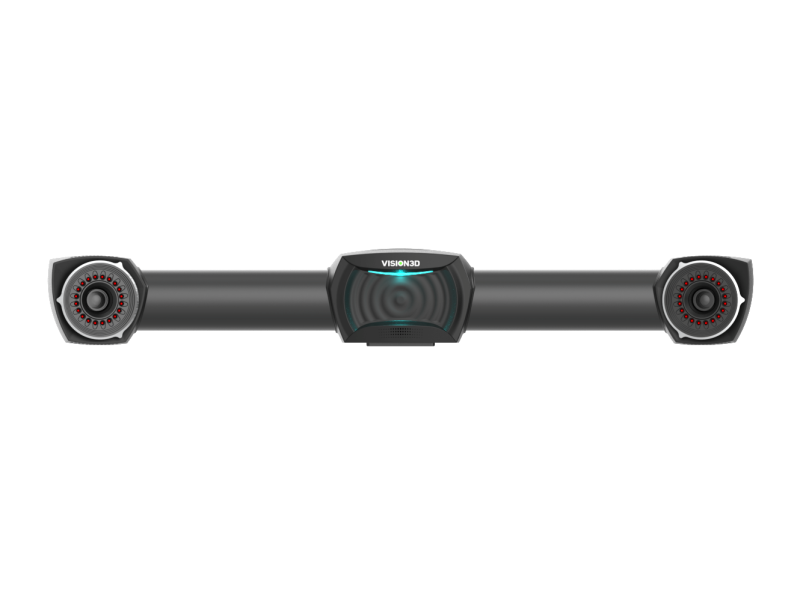

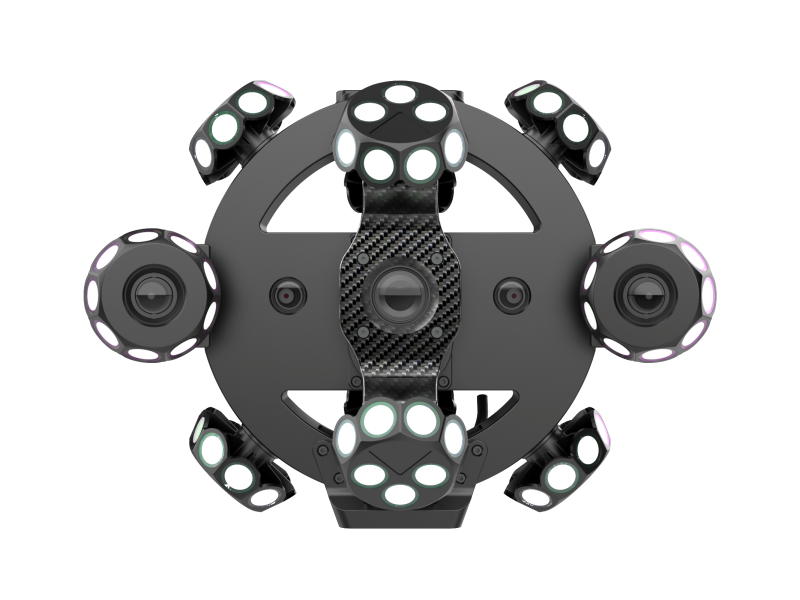

The PowerScan®-T is an advanced 3D measurement solution that combines a high-precision 3D scanner with a dedicated optical tracker. Powered by intelligent optical tracking technology and ultra-high-resolution smart cameras, it delivers metrology-grade accuracy without the need for physical reference targets.
Independent Technology
Integrated HW & SW
Industrial Expertise
Customer Focus
Accurately captures intricate details, such as circular holes and irregular slots in sheet metal parts.
Enable dynamic measurements without the need for adhesive markers, eliminating time-consuming pre-processing and significantly enhancing production efficiency.
With accuracy up to 0.02mm, the system supports intelligent edge detection and precise hole position extraction, ensuring high-fidelity capture of every detail.
Supports the cascading of multiple trackers to seamlessly handle the inspection of extra-large workpieces exceeding 10 meters.
| Product Specifications | PowerScan®-T 3M | |
|---|---|---|
| Measurement Range [mm2] | 370×270 | 200×140 |
| Resolution [mm] | 2048×1536 | 2048×1536 |
| Point Distance [mm] | 0.19 | 0.1 |
| Single Measurement Accuracy [mm] | 0.03 | 0.02 |
| Single Measurement Time [s] | 0.6 | 0.6 |
| Net Weight [kg] | 5 | 5 |
| Size [mm] | 400×210×165 | 300×195×120 |
| Tracker Camera Resolution [pixel] | 25,000,000 | 25,000,000 |
| Volumetric Accuracy[mm] | 10.4 m³ (at 3.5 m from tracker) 0.05 | 0.045 |
| 28.6 m³ (at 5.0 m from tracker) 0.07 | 0.06 | |
| 49.0 m³ (at 6.0 m from tracker) 0.09 | 0.08 | |
| Recommended Applications | Large-scale Complex Parts: EV Battery Enclosures, Integrated Die-castings, BIW (Body-in-White), Aerospace Structural Components | |
We offer a comprehensive after-sales support system for all PowerScan® 5M | 12M units, including a one-year warranty and prompt replacement of spare parts. Our experienced technical team is available online to provide real-time assistance for troubleshooting, calibration, and maintenance guidance. Each system is delivered with all standard accessories, such as calibration targets and connection cables, ready for immediate use. All scanners and software are fully tested and calibrated before shipment, ensuring reliable performance, easy operation, and minimal setup time—allowing you to focus on accurate and efficient inspection workflows.
